Effective Compression Ratio - Boost Vs. Static CR

Relation between Boost Pressure, Geometric, and Effective Compression Ratio

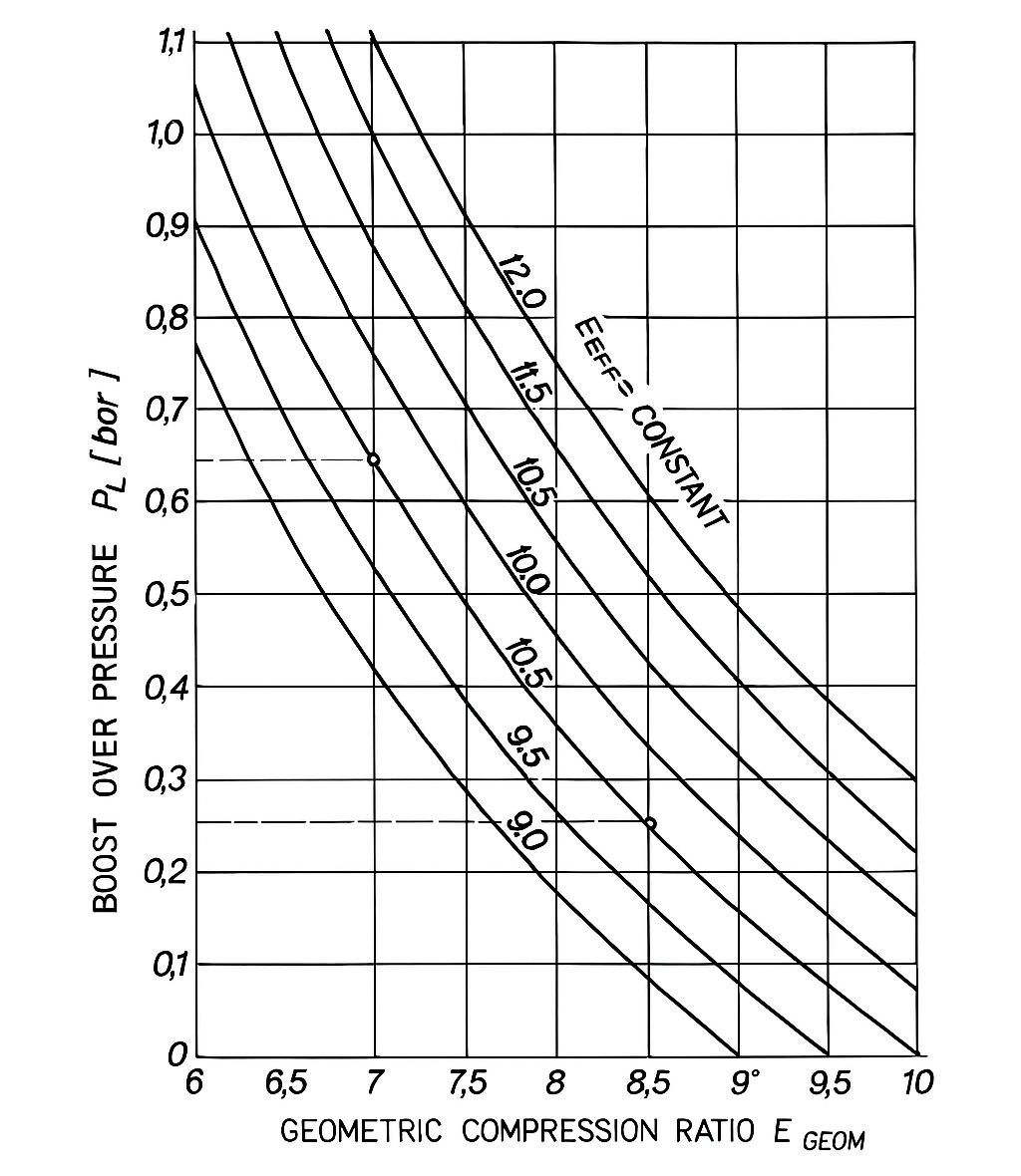

This graph illustrates how the effective compression ratio in an internal combustion engine changes with varying levels of boost pressure (from a turbocharger or supercharger) for different geometric compression ratios (also known as static compression ratio).

In engine design, the geometric compression ratio is the fixed ratio of the cylinder's maximum volume (at bottom dead center) to its minimum volume (at top dead center), determined by the engine's physical dimensions. The effective compression ratio, however, accounts for the additional air density introduced by boost pressure, which effectively "compresses" the intake charge before it enters the cylinder. This relationship is critical for avoiding detonation (knock), optimizing power output, and selecting appropriate fuel octane levels.

For example, higher effective compression ratios increase thermal efficiency and power but raise the risk of engine damage if not managed with intercooling, timing adjustments, or higher-octane fuel.

Typically, for modern water-cooled street engines on pump premium gas, effective compression ratios above 12:1 to 13:1 can lead to detonation issues without mitigation due to the inclusion of knock sensing.

The graph probably plots boost pressure (in psi or bar) along one axis, effective compression ratio along another, with lines or a grid representing different geometric compression ratios. It serves as a reference tool for tuners and builders to balance boost and static compression for safe, high-performance setups. Common applications include turbocharged or supercharged engines, where low static ratios (e.g., 8:1) allow higher boost, while higher static ratios (e.g., 10:1+) provide better off-boost response but limit maximum boost.

For instance, a geometric ratio of 7.0:1 at 14.7 psi (1 bar) boost yields an effective ratio of about 11.5:1.

This assumes ideal conditions and doesn't factor in variables like intercooling efficiency, cam timing, or altitude, which can alter real-world results.
