Troubleshooting Oil Pump Cover Leaks — VW Type 1/4 Air-Cooled Engines

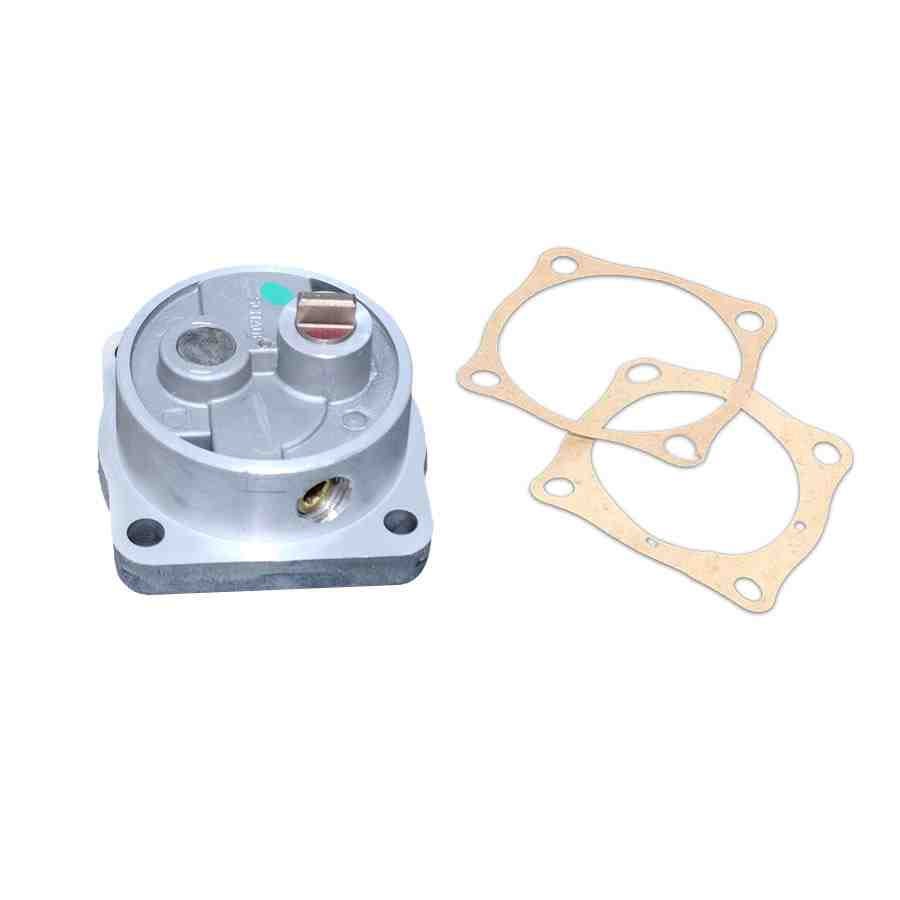

If you’re experiencing oil leaks from the oil pump cover on your aircooled VW Type 1 or VW Type 4 engine, follow this systematic approach to identify and resolve the issue.

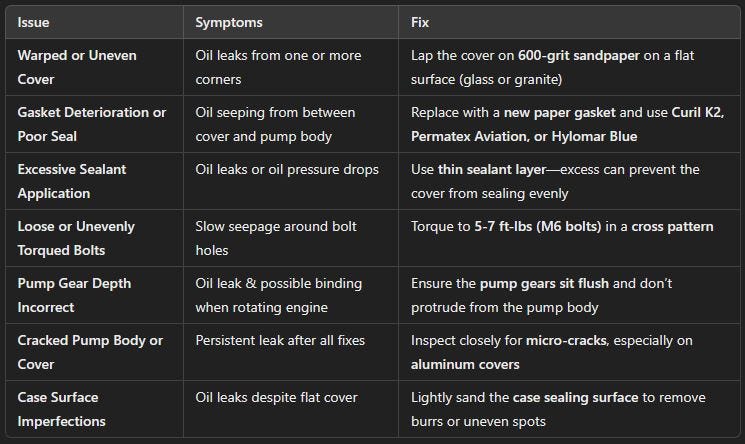

Step-by-Step Leak Diagnosis & Fix

Step 1: Check Torque & Sealing Surface

• Ensure the bolts are properly torqued to 5–7 ft-lbs (60–84 in-lbs).
• If still leaking, remove the cover and check the surface for warping.

Step 2: Inspect & Replace the Gasket

• If using a paper gasket, check if it’s soaked in oil or torn — replace it if necessary.
• Apply a thin layer of Curil K2, Permatex Aviation, or Hylomar Blue sealant on both sides of the gasket.

Step 3: Lap the Cover for a Perfect Seal

• Place 600-grit sandpaper on glass or a machined surface.
• Move the cover in a figure-8 pattern until the entire surface is even.
• If the leak persists, try a steel cover instead of aluminum.

Step 4: Check Gear Depth

• The oil pump gears must sit slightly recessed (0.001"-0.002") or flush with the pump body.
• If gears protrude, they can prevent the cover from sealing — replace or shim the gears if necessary.

Step 5: Verify Sealant Application

• If RTV or Loctite 574 was used, ensure it wasn’t applied too thick — too much can prevent a proper seal.
• For metal-to-metal sealing (no gasket), use Loctite 574 or Dirko HT (thin layer only).

Step 6: Check for Oil Pressure Issues

• If the leak is accompanied by low oil pressure, ensure the pump is seated correctly and gears rotate freely.
• Check that oil passages aren’t blocked by excessive sealant.

Step 7: Case & Cover Integrity

• Inspect for micro-cracks in the pump body or cover — especially in aftermarket aluminum covers.
• If the case surface is uneven, lightly sand it with fine sandpaper.

Full-Flow Oil Pump Cover Leaks

If using a full-flow cover (AN fittings):

Ensure fittings are tight but not over-tightened — overtightening can crack aluminum covers. Use Teflon tape or Loctite 565/592 on threads to prevent leaks at the fitting. Verify oil lines aren’t pulling on the fittings, as tension can cause small leaks.

Final Testing Before Running the Engine:

Wipe everything clean and start the engine.

Let it idle and check for seepage.

If still leaking, retorque bolts slightly and recheck the surface.

Wipe everything clean and start the engine. Let it idle and check for seepage. If still leaking, retorque bolts slightly and recheck the surface.

Need more information on VW Oil Pumps?

Check out this YouTube video for starters and pick up a copy of the official Bentley VW Service Manual.
