Are Porsche 997.2 and 991.1 9A1 (MA1) engines susceptible to Bore Scoring?

Bore scoring is a possible issue in Porsche 911 models equipped with the 9A1 or MA1 engine, specifically the Porsche 997.2 and Porsche 991.1. This problem also affects Boxster and Cayman models 987.2 and 981. Bore scoring refers to the damage on the cylinder walls of the engine, which can cause the pistons to seize, potentially leading to severe engine problems.

Comprehending this problem is essential for preserving the health and durability of your Porsche 911’s engine. Let’s clarify what bore scoring in 997.2 and 991.1 models entails, including its causes, symptoms, and the ways to prevent or resolve it in your Porsche engine.

Various factors contribute to bore scoring in the Porsche 997.2 and other Porsche sports car models with an Alusil engine block. These factors include inadequate lubrication or maintenance, wear and tear from high mileage, and problems associated with thermal expansion of engine components, such as overheating or running in colder climates. Porsche owners must be aware of these causes to take preventive measures and recognize the signs of this issue.

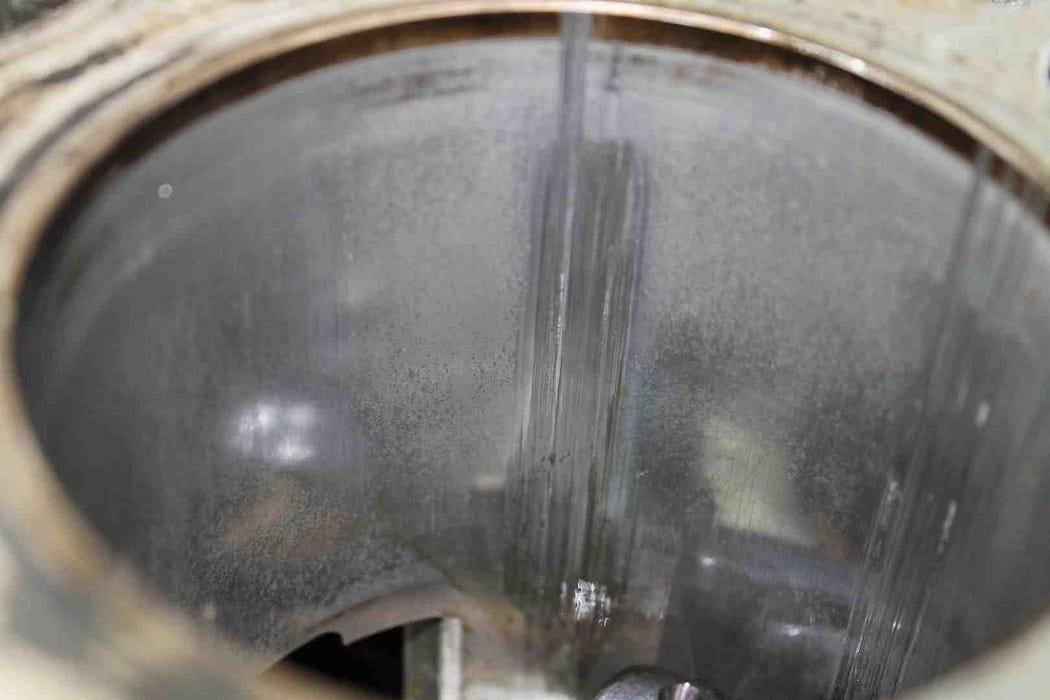

Scored 997.2/991.1 Alusil Engine block, showing signs of piston seizure.

There are two main failure mechanisms that cause bore scoring in the 997.2. The first is the shrinkage of the cylinder bores, which leads to piston seizure. The second is the breakdown of the aluminum silicon cylinder system, which happens when there are too few exposed silicon particles to support the necessary oil tribofilm on the cylinder walls.

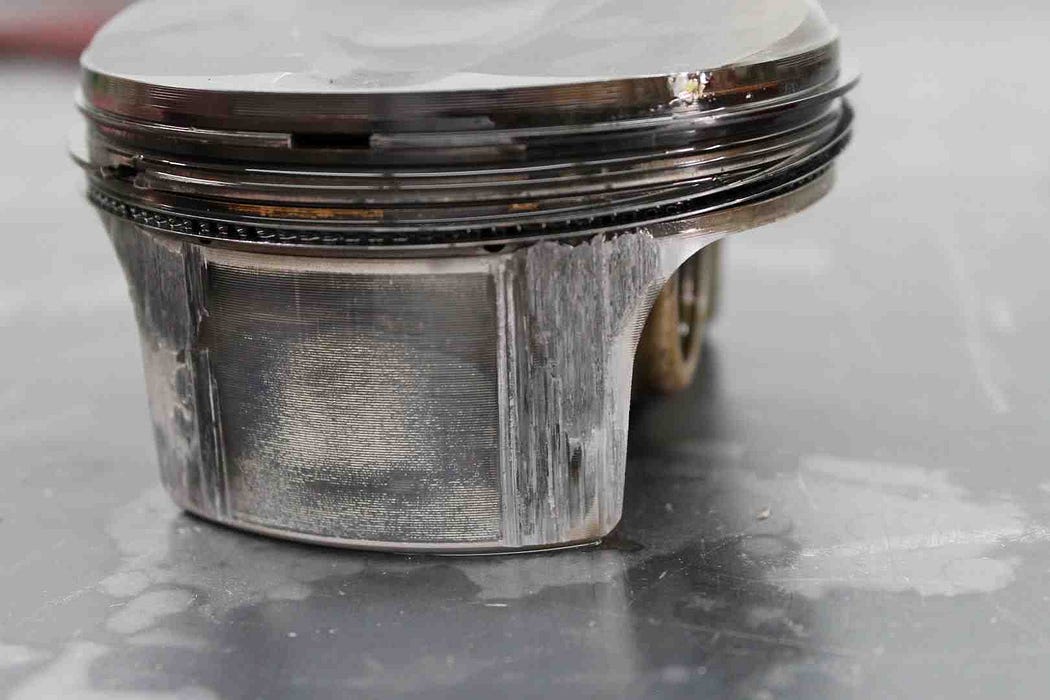

Seized 997.2/991.1 Piston — Piston seizure occurs when the cylinder bores in the area closest to the main bearing saddles shrink.

To prevent bore scoring in your Porsche 997.2, it’s crucial to follow a rigorous preventative maintenance schedule. This involves more frequent oil changes using a high-quality oil like Driven DI40, which contains higher levels of moly than factory recommended Porsche A40 oils. Moly friction modifiers, unlike ZDDP anti-wear additives, can bind to the aluminum cylinder walls, offering an additional layer of protection.

Consistently using a complete fuel system cleaner with PEA (polyetheramine), such as Driven Injector Defender, can prevent injector problems that might cause over-fueling and cylinder bore wash down, which accelerates cylinder bore wear. Injector Defender also protects your fuel system components from the damaging effects of ethanol-enriched fuels and also stabilizes fuels.

It’s also crucial to allow your engine to warm up properly before driving your Porsche aggressively. Avoid idling the engine to warm it up and refrain from using full throttle or high engine speeds until the engine oil temperature reaches at least 160 degrees Fahrenheit and the coolant has reached normal operating temperatures.

If you own a Porsche 997.2, be vigilant for bore scoring symptoms such as excessive oil consumption, increased engine noise, misfires, or one tailpipe being more sooty than the other. These signs can indicate bore scoring, and early detection is crucial to prevent more serious damage. It’s advisable to have your Porsche engine bore scoped to check for bore scoring and to conduct regular used oil analysis through SPEEDiagnostix so that you have trend data for your engine. This allows you to monitor your engine’s condition and potentially identify issues before symptoms arise.

Used Oil Analysis report from SPEEDiagnostix showing bore scoring in a Porsche engine. Note the elevated iron, aluminum, and silicon values.

It is worth noting that with the 991.2, Porsche introduced SUMEbore APS-coated cylinder bores that consist of a very thin, wear resistant iron composite coating that does not impede heat transfer like an iron sleeve would, serving the same purpose as as Nikasil. These SUMEbore coated cylinders would not appear to suffer the same issues as the 997.2 and 991.1 Alusil engine blocks. The same technology is also utilized in the 718 Boxster and Cayman models.

Suspecting bore scoring in your Porsche 997.2? Prompt professional intervention can prevent more extensive and costly repairs later on. Industry experts LN Engineering and Flat 6 Innovations provide solutions for preventing and repairing bore scoring, including Alusil engine block repairs and complete Porsche engine rebuilds.

Monitoring for bore scoring and knowing how to address it is crucial for any Porsche Boxster, Cayman, or 911 owner. By staying informed and vigilant, you can maintain the exceptional performance and reliability that Porsches are known for. Remember, regular maintenance and promptly addressing any issues your car might have are key to keeping your Porsche in optimal condition.
